SONY XCG-H280E

2/3英寸280万像素逐行扫描EXview HAD CCD II™ CCD（全高清），可见光和近红外波段的灵敏度比以前的型号高。除了继承索尼XCD系列的一些独特功能，如批量触发和顺序触发模式，XCG-H280E具有全高清高帧率图像传输功能，具有8,10或12位视频数据输出。

在线购买

单击进入在线购买

在线留言

分享至：

产品概述
规格参数
资料下载

Sony is expanding its popular XCG GigE camera series with the introduction of a new high-quality, high-sensitivity monochrome camera.

The new XCG-H280E incorporates a 2/3-type EXview HAD CCD II™ sensor which provides greater sensitivity in the visible and near-infrared wavelengths than previous models. In addition to inheriting some of the unique features of Sony’s XCD Series such as Bulk Trigger and Sequential Trigger modes, the XCG-H280E features a full-HD high frame rate image-transfer capability with 8-, 10-, or 12-bit video data output.

The XCG-H280E incorporates the GigE Vision® interface standard, based on Gigabit Ethernet technology. In response to the growing demand for large-scale systems, this interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and the availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. By utilizing the features and benefits of the GigE Vision, the XCG-H280E camera is ideally suited to the demanding requirements of ITS (Intelligent Transportation Systems) and machine-vision applications.

Excellent picture quality thanks to progressive scan CCD technology from Sony CCD read out supports Partial scan, Binning 8/10/12 bits / pixel (Raw data or B/W)
Shutter Manual (2 to 1/100,000s)
Gain control Manual (0 to + 18dB) /Auto
16 Memory Channels
GigE Vision interface based on Gigabit ethernet 1000 BASE-T technology
Packet resend mechanism
Data transfer length up to 100m
Advanced trigger modes (sequence, pulse width, delay)
Fixed trigger latency (from hardware input to exposure start)
Exposure output, digital inputs/outputs 1,024 Bytes User Memory

GigE Vision Interface
The adoption of the GigE Vision® Version 1.2 adds to the outstanding value and performance of the XCG-H280E camera. Being GenICamcompatible, the XCG-H280E is easy to integrate, thanks to a host of commercially available image-processing libraries.

High Frame Rate Image Transfer
The XCG-H280E features a high readout rate of uncompressed images for smooth and clear results. This also enables the camera to capture fast-moving objects without sacrificing image quality.

High Sensitivity
Utilizing Sony’s latest EXview HAD CCD II technology enables the XCG-H280E to capture clear images in lowlight environments. When used with an infrared strobe, the camera’s high sensitivity in the near-infrared wavelength delivers outstanding picture quality.

Image Buffer
The XCG-H280E is equipped with an image buffer, which serves as temporary storage for captured images for later transmission or retransmission. This function allows users to maximize bandwidth in multiple-camera operations or reconfirm specific images as required.

Bulk Trigger Mode & Sequential Trigger Mode
In addition to conventional Trigger mode, the XCG-H280E camera features advanced Bulk Trigger and Sequential Trigger modes. The camera supports 16 memory channels that can store up to 16 different camera setups (exposure, gain, LUT). Bulk Trigger mode allows the XCG camera to capture up to 16 images in rapid succession using a single software or hardware trigger. Sequential Trigger mode allows the camera to capture a single image using successive setups stored in the memory channels with each software or hardware trigger.

Low Power Consumption and Compact Design
The XCG-H280E camera features low power consumption and a compact 50 x 50 x 57.5 mm (2 x 2 x 2 3/8 in) design. The camera also has the ability to operate at temperatures of up to 50°C / 122°F."

Camera	XCG-H280E
Image sensor	2/3-type progressive scan IT CCD
Sensor technology	EXview HAD CCD II
Standard resolution (H x V)	1,920 x 1,080
Full resolution (H x V)	1,920 x 1,440
Standard frame rate	32fps at standard resolution (2ch readout)
Cell size (H x V)	4.54 x 4.54 µm
Minimum illumination (50%)	0.5 lx (F1.4, +18 dB, Shutter: OFF)
Sensitivity	400 lx at F8 (0 dB)
Gain	Auto, Manual : 0 dB to +18 dB
Shutter speed	2 sec to 1/100,000 sec
Camera Features
Readout modes	Normal, Binning (2 x 2, 1 x 2, 2 x 1), Partial Scan
Readout features	Gamma (variable), Built-in test pattern
Synchronization	Hardware trigger, Software trigger
Trigger modes	Trigger start, Trigger start and duration, Bulk trigger and Sequential trigger mode
Memory channel (UserSets)	16 channels
User memory	64 Byte x 16 ch
Image buffer	16 frames
Interfaces
Video data output	8, 10, 12-bit digital
Digital interface	Gigabit Ethernet (1000BASE-T)
Camera specification	GigE Vision® Version 1.2
Digital I/Os	TTL IN (2x), TTL OUT (2x)
General
Lens mount	C mount
Power requirements	DC +12 V (+10.5 V to +15.0 V)
Power consumption	5.3 W (typ.)
Operating temperature	-10°C to +50°C (14°F to 122°F)
Storage temperature	-30°C to +60°C (-22°F to +140°F)
Operating humidity	20% to 80% (no condensation)
Storage humidity	20% to 95% (no condensation)
Shock resistance	70 G
Dimensions (W x H x D)	50 x 50 x 57.5 mm (2 x 2 x 2 3/8 inches) (Not including protruding parts)
Mass	200 g (7.0 oz)
Regulations	UL2044, FCC Class A, CE: EN55022, AS/NZ: EN55022, VCCI: Class A, KN22/KN24: Class A
Supplied accessories	Lens mount cap (1) Terminal block (1) Operating instructions (1)

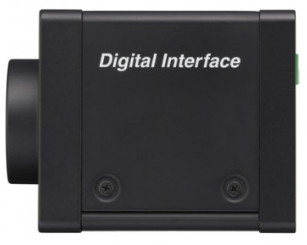

SONY XCG-H280E

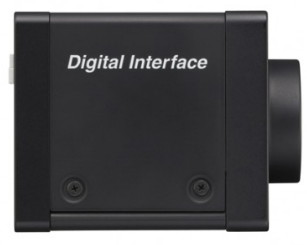

SONY XCG-H280E

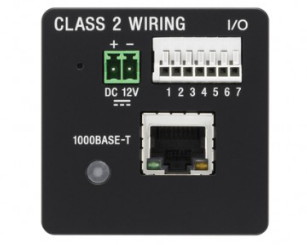

SONY XCG-H280E
