Sprcifications:
High Resolution, Effective pixels can reach 2MP
30X/36X Optional
OSD Menu/Line control/RS-485 Control
Remote control operations are possible through RS-485 signal interface, also can control the lens by external control line.
Day/Night
Camera will auto switch to color at daytime and B/W at night according to the environment illumination to ensure a high sensitivity and clear image.
Auto Focus
Camera can auto focus from 0.1m to limitless distance.
Built-in IR Color Filter
Built-in IR color filter which can fully enhance the day & night
|

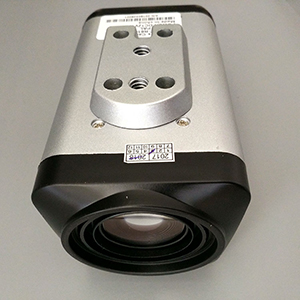

Model
|
SZ-AR8318-P2H
|
|
mage Sensor
|
IMX322 1/2.8 inch 2.0 Mega
|
|
Lens Parameter
|
Lens:30X 3.9~117MM FNo: 1.6~3.5
|
|
Max. Resolution
|
1920x1080
|
|
Frames per second
|
25/30
|
|
Min. Illumination
|
0.001 lux
|
|
Output Format
|
1080P/25 AHD, 1080P/30 AHD
|
|
Denoise
|
2D/3D
|
|
Optical zoom
|
30X
|
|
Digital zoom
|
10X
|
|
Auto IRIS
|
YES
|
|
AF mode
|
Normal/Zoom Trigger/Interval
|
|
AWB mode
|
Auto/Manual/outdoor/indoor
|
|
AE mode
|
Auto/shutter priority/IRIS priority/manual
|
|
Electronic shutter
|
1/25~1/10000
|
|
IR cut mode
|
Auto/day/night
|
|
Privacy Zone
|
24Mask
|
|
OSD
|
Title/Display
|
|
Interface
|
9 Pin FPC
|
|
Protocol
|
SONY VISCA
|
|
Dimension (W/H/D)
|
50 x 60 x 96.2mm
|
|
Weight
|
270g
|
|
Power
|
240mA
|
|
Operating Temprature
|
-20℃ ~ +60℃
|
